What Thermal Imaging Actually Sees
People sometimes assume a thermal camera detects water itself, but that is not quite right. The camera reads surface temperature, and wet materials behave differently than dry ones because evaporation cools them and water conducts heat at a different rate than air filled insulation or dry wood. When we sweep a wall with the camera, the wet zones show up as cooler patches against the warmer surrounding surface, creating a thermal signature that traces the path of the water with surprising precision. You can often see the exact shape of a leak, the line where water ran down a stud cavity, or the pooled area sitting on top of a bottom plate.

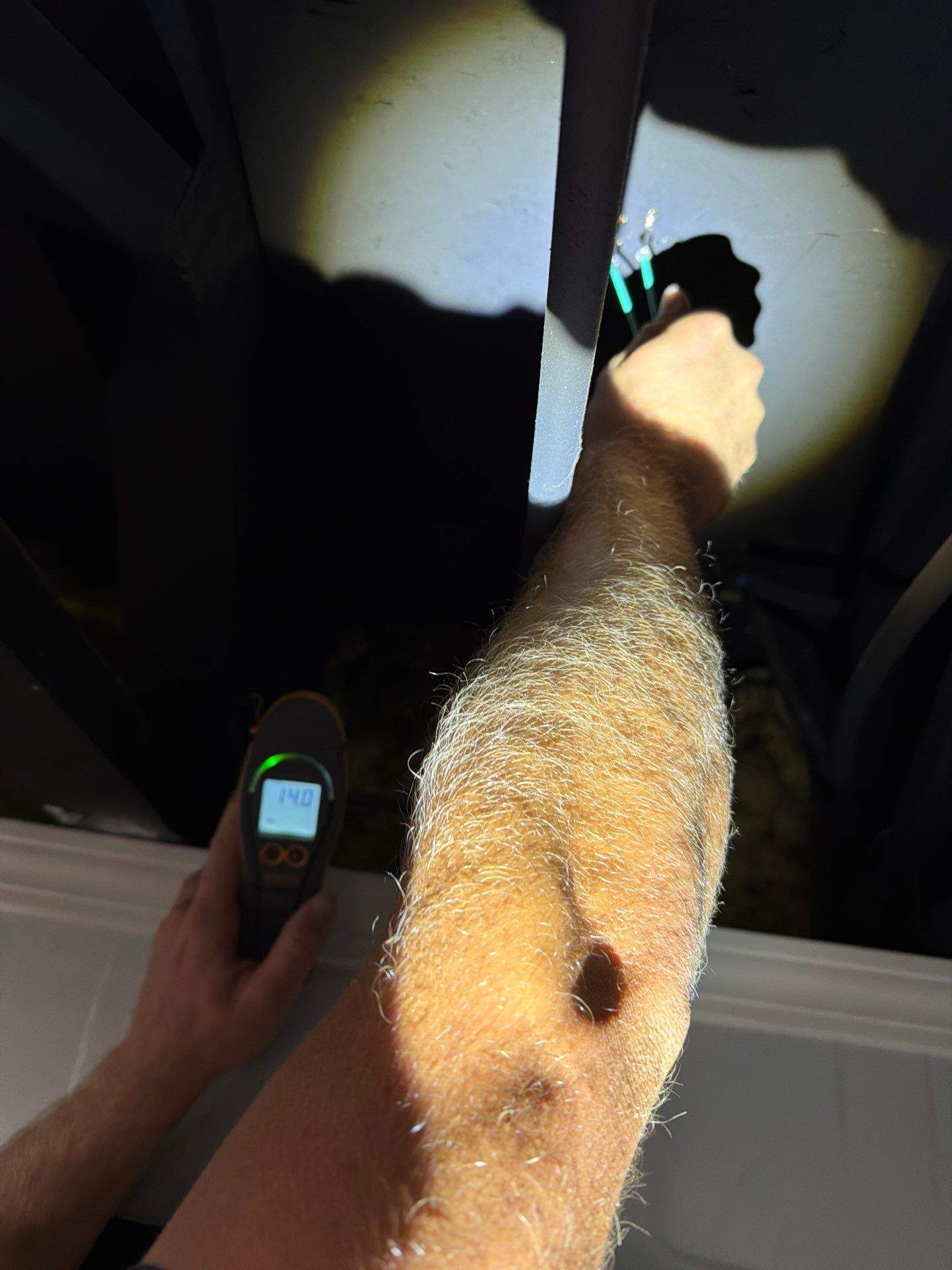

The camera alone does not confirm moisture though. A cool spot could be a draft, a missing piece of insulation, or a cold water line behind the drywall. That is why every thermal anomaly gets verified with a pin meter or a non invasive capacitance meter that reads the actual moisture content of the material. The two tools work together, with the thermal image telling us where to look and the moisture meter telling us whether the cool spot is wet or just cold. This combination keeps us from cutting open walls that do not need to be opened and from leaving wet pockets behind walls that look fine.
The conditions inside the home also influence what the camera can see, which is why our technicians spend a few minutes preparing the space before the scan begins. We want a temperature differential between the wet material and its surroundings, ideally at least a few degrees, because that contrast is what makes the wet area visible on the screen. If the HVAC has been off and everything in the room is sitting at the same temperature, we may run the heat or air conditioning briefly to create that differential. We also close exterior doors, kill ceiling fans, and pull back furniture from walls so that drafts and reflections do not create false positives. None of this is complicated, but it is the difference between a scan that finds everything and a scan that misses a hidden saturated cavity behind a bookcase.
Building the Moisture Map of Your Home
When we arrive at a Rushville home for an assessment, typically within 2 hours of the first call, we work outward from the known source. If a supply line failed under a kitchen sink, we start there and follow the water through the cabinet base, across the floor, into the toe kick, under adjacent cabinets, and out into the living space. We document moisture readings at fixed intervals so we can compare them later and confirm the drying is actually working. Each reading goes on a sketch of the affected area, along with the material type, since drywall, hardwood, tile substrate, and insulation all dry at different rates and tolerate different moisture levels before they have to be removed.
Ceilings get the same treatment from below and, when access allows, from the attic side. Water from a roof leak or a second floor bathroom can travel along the top of a ceiling joist before dropping through the drywall, which means the visible stain is almost never directly under the source. Our early detection guide on hidden water damage goes deeper into the symptoms homeowners often miss, but the short version is that thermal imaging routinely reveals saturation two to six feet away from any visible damage.
Floors are the area where mapping pays off the most. Engineered hardwood can look fine on top while the subfloor underneath is fully saturated, and tile assemblies can hide standing water in the mortar bed for weeks. We pull baseboards in suspect areas, take readings into the bottom plate, and check the subfloor through any available access. When the situation calls for it, we coordinate with our specialists who handle water damage behind walls to confirm what is happening inside the cavity before we commit to a demolition plan.
The map itself is more than a single sketch. By the time the initial assessment is complete, the Rushville Water Restoration crew has usually built a layered document that includes a floor plan with affected rooms marked, thermal photographs keyed to specific wall sections, moisture meter readings noted by location and material, and a written summary of how the water traveled from its source to its furthest reach. This level of detail takes longer to produce on day one, but it eliminates the rework and second visits that plague jobs handled with a quicker, looser inspection.
Why the Map Matters for Drying and Insurance
A proper moisture map changes how the job runs in two important ways. First, it tells us exactly where to place air movers and dehumidifiers so the drying is targeted instead of generic. A room with wet drywall on the north wall and a dry south wall does not need fans pointed everywhere, it needs airflow directed at the actual wet assembly. Second, it gives us a baseline. We take new readings every day, plot them against the original map, and confirm the numbers are dropping toward the dry standard for that material. When the readings hit target, we know drying is complete, not because the surface feels dry but because the meter says so.
The same map becomes the documentation your insurance adjuster needs. Photographs of thermal images, daily moisture logs, and a clear diagram of the affected area transform a vague claim into a specific, defensible scope of work. Adjusters appreciate this because it eliminates guesswork, and homeowners appreciate it because the claim moves faster. If you want to understand how this documentation feeds into the broader claim process, our overview of filing a water damage insurance claim walks through what insurers expect to see.
There is also a quieter benefit that does not get talked about enough. A good moisture map catches the things that would otherwise turn into mold problems six weeks later. Under the S520 standard, hidden moisture that sits past the 48 to 72 hour window is the single most common trigger for mold growth inside wall cavities, and the only reliable way to prevent it is to find every wet area on day one. The thermal camera does not let pockets hide, and that is really the whole point. You cannot dry what you have not found.
Homeowners in Rushville who call Rushville Water Restoration after a leak often ask whether the thermal scan is really necessary if the damage looks small. The honest answer is that the smaller jobs are exactly where mapping prevents the biggest surprises, because a minor visible stain almost always represents a fraction of the actual wet area. Spending an extra hour with the camera on day one routinely saves weeks of secondary damage repair later, and that math has held true across thousands of residential losses.
